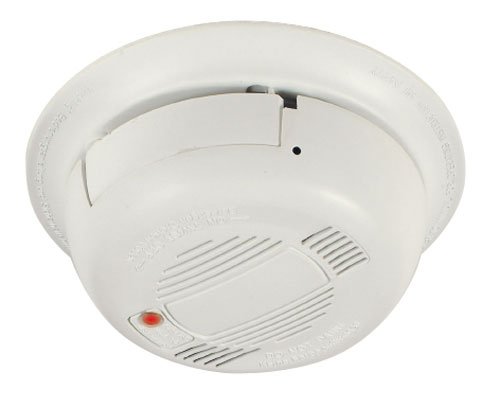

| Click to enlarge image(s) |
Features:
* 3.7mm pinhole Lens
* 470TVL
* 0.1LUX
* 12VDC
* Color CCD Camera
Specifications:
* Type: Color CCD Camera
* Pick-up device: SONY CCD image sensor
* Picture elements : EIA/NTSC: 512 H x 492 V - CCIR/PAL: 512 H x 582 V
* Horizontal resolution: 470 TVL
* Minimun Illumination: 0.1 Lux
* Horizontal Sync.
* Frequency: EIA//NTSC: 15.734 KHZ - CCIR/PAL: 15.625 KHZ
* Vertical frequency : EIA//NTSC: 60 HZ - CCIR/PAL: 50 HZ
* Clock frequency: EIA//NTSC: 19.0699 MHZ - CCIR/PAL: 18.9375 MHZ
* Function: Alarm Output
* Lens: 3.7mm Pinhole Lens
* Video output: 1Vp-p , 75 Ohms
* Gamma: 0.45
* Power supply : DC12V
* Power Consumption: 150 mA
* Storage Temperature : -30°C ~ 60°C
* Operation Temperature : -10°C ~ 45°C
* Pictures and specifications are subject to change without prior notice
